Thermocouple with Connector

Thermocouple with Connector

Thermocouple type K, J, T, N, E, B, R and S with connector directly fitted in the sheath.

The thermocouple with connector is particularly useful when a quick junction to the process is required and/or extensions are needed.

The plug termination (Standard or Mignon) allows in fact to connect or disconnect the thermocouple in a simple and fast way, with simple or self-locking connectors.

Mineral oxide (MgO) insulation provides greater protection against thermal shock and greater resistance to vibration.

Contact us

ASTC-C Model

Single or double thermocouple
Type K, J, T, N, E, B, R, S. Other types available on request
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according to ASTM E230
Hot junction: isolated, grounded
Mineral oxide isolated execution (MgO)
Sheath diameters ranging from 0.5 to 8 mm (diameters 0.25 mm and 10 mm on request)
Sheath in SS 304, 310, 316, 321, Inconel600, Nicrobell C
Mignon or Standard connector polarized thermocouple directly fitted on the sheath

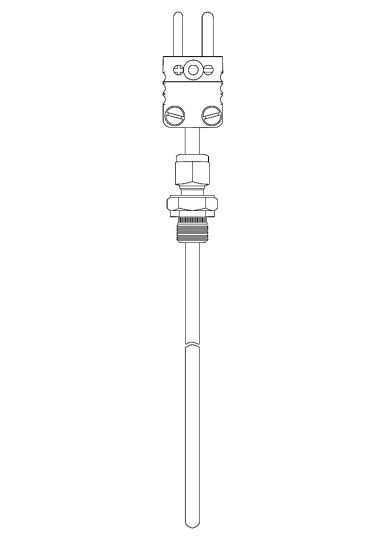

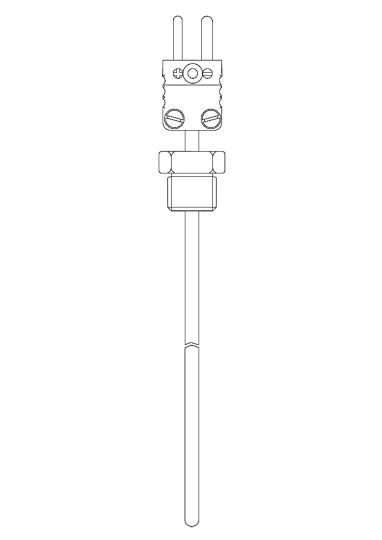

Fixed or sliding fittings on sheath

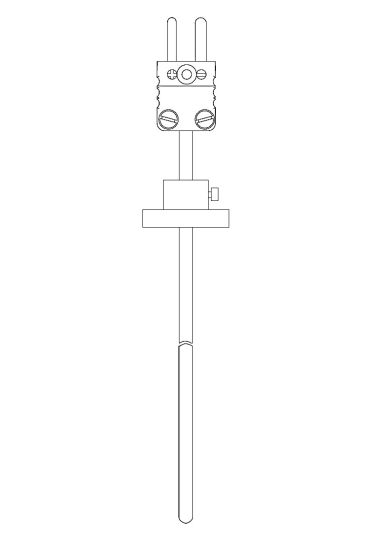

Possibility of using a plate or flange for contact measurements (for sheath diameter 6 mm)
Support for aero-thermal surveys
Transmitter from DIN BAR
Datasheet
