Thermocouple for Pipes

Thermocouple temperature probe with clamp for contact temperature measurements on tubes or cylindrical bodies

Clamp-on thermocouples are ideal for external measurements of pipes or cylindrical bodies without having to drill into the pipe. Due to the fast response time of the thermocouples, fast and reliable measurements can be obtained.

The adjustable clamp can be installed on the measuring sheath perpendicularly and longitudinally so that it can be used for different process requirements. Also ideal for temporary or sporadic measurements.

ASTC-S model

Type K, J, T, N. Other types on request

Tolerance class 1 or 2 according to CEI EN60584-1, Standard o Special according to ASTM E230

Hot junction: isolated or grounded

Simple insulation execution

Sheath diameters depending on clamp or ring size

Sheath in SS 304 / 316

Tip in SS 304 / 316 with adjustable clamp for contact measurements on pipes or cylindrical bodies.

Junction types:

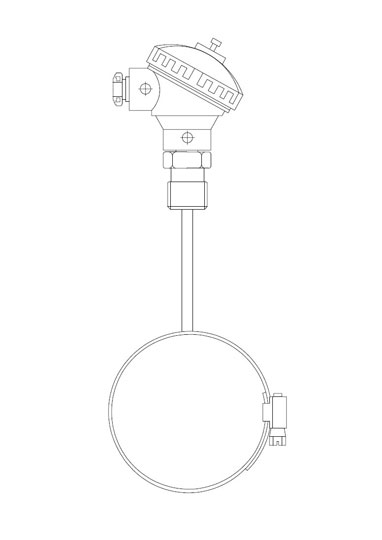

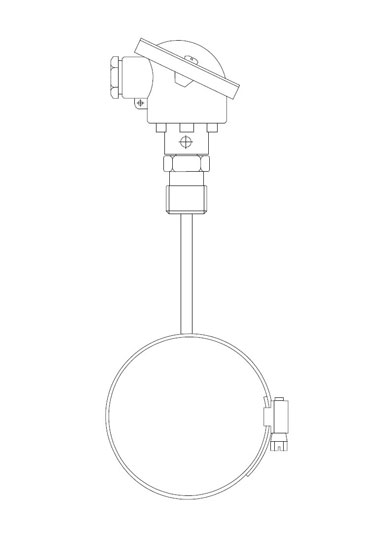

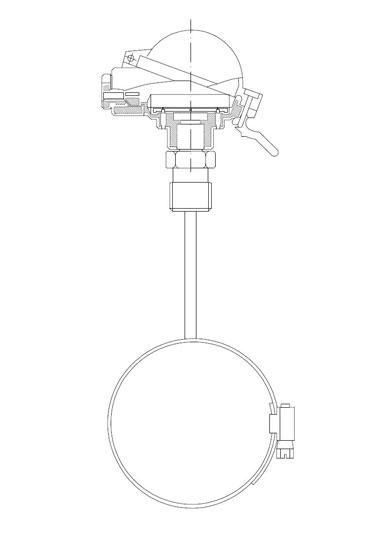

- Aluminum connection head. Ceramic terminal block or temperature transmitter with 4..20 mA analog output (HART protocol on request)

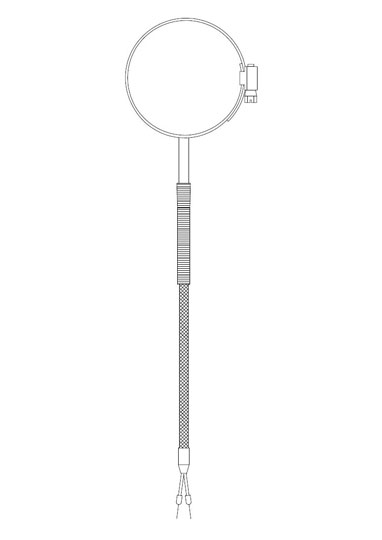

- Extension or compensation cable in different sizes and insulation (PVC, Teflon, Silicone Rubber, Fiberglass TTS)

DIN bar temperature transmitter on request
