Simple execution Thermocouple

Simple execution thermocouple

Wire thermocouple for general applications

Thermocouple wire execution for different applications, characterized by a wide flexibility of use through various combinations of size and shape of the measuring sheath.

Possibility of producing a wire thermocouple with exposed junction, in steel tubes, eyelet tips for fixing with screws, aluminum, copper and brass blocks for special measurements on the process.

Contact us

ASTC-E model

Type K, J, T, N. Other types available on request
Tolerance class 1 or 2 according to CEI EN60584-1, Standard or Special according to ASTM E230
Hot junction: isolated, grounded or exposed
Execution by simple insulation
Sheath in SS 304, 316, Inconel600
Sheath diameters ranging from 2 to 21 mm
Stainless Steel Pot Seal or crimping of the sheath on cable with anti-kink spring
Extension or compensating cable in different sizes and insulations (PVC, Teflon, Silicone Rubber, Fiberglass TTS)
Polarized thermocouple connector directly fitted on cable
Fixed or sliding fittings
Possibility of using a plate for contact measurements or sliding flange (for sheath diameter 6 mm)
DIN bar temperature transmitter on request
Aero-thermal hole for environmental measurements
Datasheet

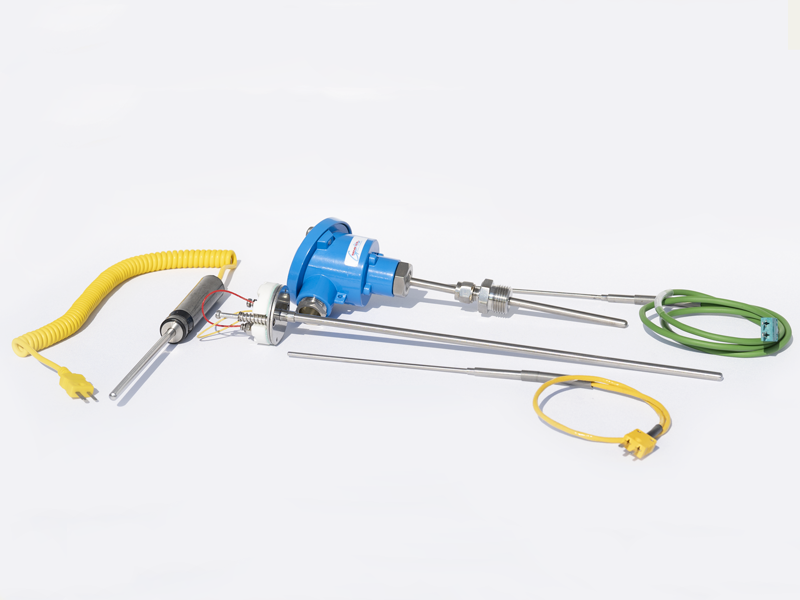

Thermocouples

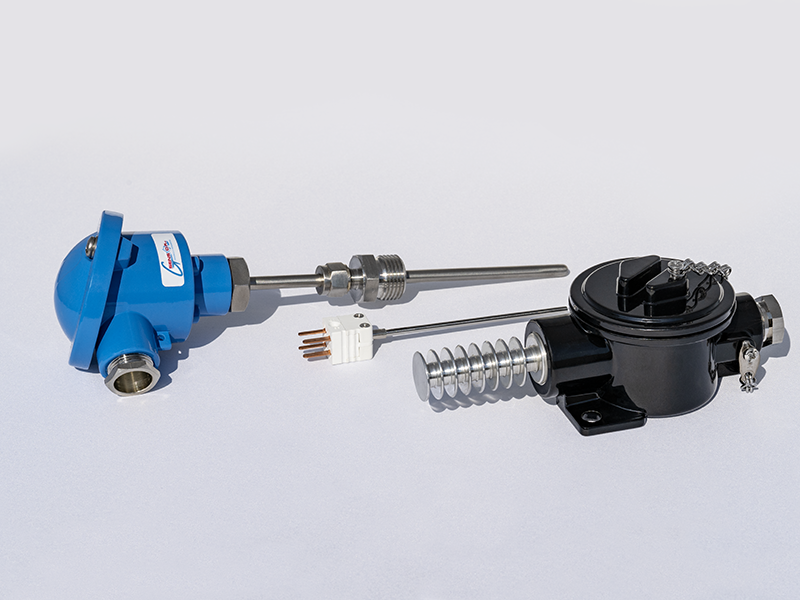

RTDs

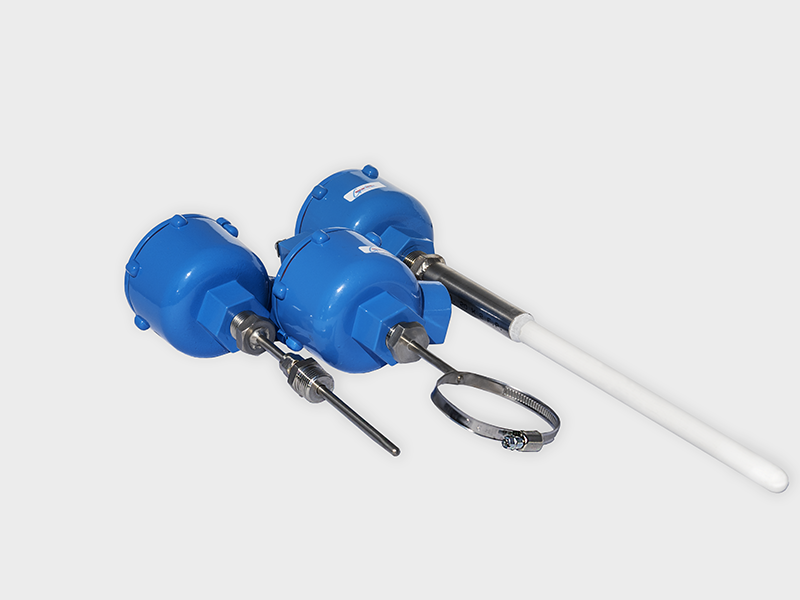

Atex Probes

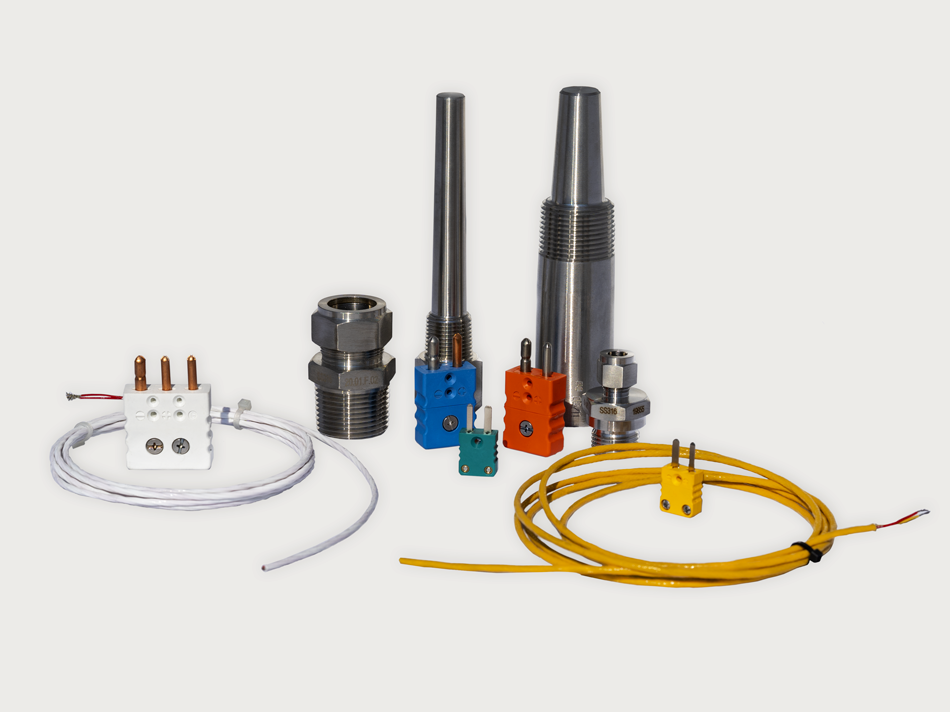

Accessories

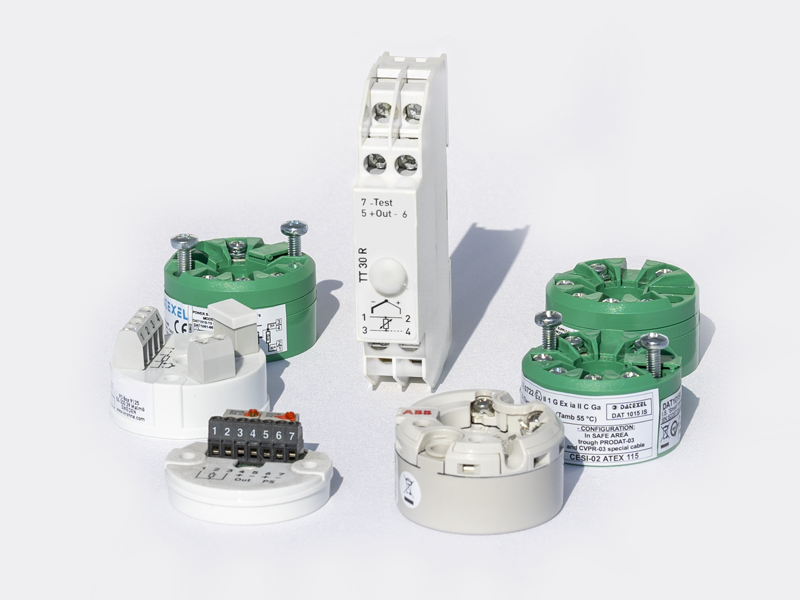

Transmitters
