Mineral Insulation RTD sensor

Mineral Insulation RTD sensor

Mineral isolated (MgO) Resistance thermometer with high mechanical qualities and resistance to strong vibrations

Mineral oxide (MgO) isolated resistance thermometers meet complex requirements in industrial sectors.

The structure and the type of constructions make them indestructible, adapting to heavier industrial processes, heavy and subject to strong vibrations.

Mineral isolated RTD, through the right combination of materials for their construction, are used almost everywhere, such as test benches, packaging, test rooms, tuning, electric or thermal engine board, industrial research, etc.

Contact us

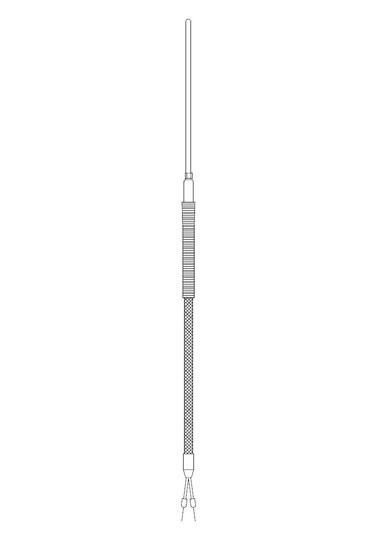

ASPT-W model

Nominal resistances: 100 Ohm @ 0 °C, 1000 Ohm @ 0 °C, (others available on request)
Tolerance classes according to EN60751 or DIN
Measurement range from –200 °C to + 600 °C
Number of wires per element 2, 3 or 4
Single or double element
Mineral oxide insulation execution (MgO)
Sheath in SS 304 or 316 (others on request)
Diameters from 2 to 8 mm
Pot Seal in Stainless Steel o crimping on cable with anti-kink spring
Extension cable in different sizes and insulations (Pvc, Teflon, Silicone Rubber, Fiberglass TTS)
Connector directly fitted on the cable
Fixed or sliding fittings
Possibility of using a plate for contact measurements or flange (for sheath diameter 6 mm)
DIN bar temperature transmitter available on request
